Oracle 11 RAC Survival Guide
Martin Zahn, Akadia AG,
30.09.2007
Information Technology, CH-3672 Oberdiessbach
| Used Software | Oracle Enterprise Linux 5.0 |
| Oracle 11g Release 1 (11.1) Clusterware and Database Software | |
| Dokumentation | Real Application Clusters Administration and Deployment Guide |
| Real Application Clusters Installation Guide for Linux and UNIX | |
Content
Overview
Architecture
Enterprise Linux Installation and Setup
Create Accounts
NFS Configuration
Enabling SSH User Equivalency
Install Oracle Clusterware
Install Oracle Database Software
Create Listener Configuration
Create the Cluster Database
Transparent Application Failover (TAF)
Facts Sheet RAC
Troubles during the Installation
Overview
In the past, it was not easy to become familiar with Oracle Real Application Clusters (RAC), due to the price of the hardware
required for a typical production RAC configuration which makes this goal impossible.
Shared storage file systems, or even cluster file systems (e.g. OCFS2) are primarily used in a storage area network where all nodes directly access the storage on the shared file system. This makes it possible for nodes to fail without affecting access to the file system from the other nodes. Shared disk file systems are normally used in a high-availability cluster.
At the heart of Oracle RAC is a shared disk subsystem. All nodes in the cluster must be able to access all of the data, redo log files, control files and parameter files for all nodes in the cluster. The data disks must be globally available to allow all nodes to access the database. Each node has its own redo log and control files but the other nodes must be able to access them in order to recover that node in the event of a system failure.
Architecture
The following RAC Architecture should only be used for test environments.
For our RAC test environment, we use a normal linux server, acting as a shared storage server using NFS. We can use NFS to provide shared storage for a RAC installation. NFS is an abbreviation of Network File System, a platform independent technology created by Sun Microsystems that allows shared access to files stored on computers via an interface called the Virtual File System (VFS) that runs on top of TCP/IP.
Network Configuration
Each node must have one static IP address for the public network and one static IP address for the private cluster interconnect. The private interconnect should only be used by Oracle. Note that the /etc/hosts settings are the same for both nodes Gentic and Cellar.
Host Gentic
Device IP Address Subnet Gateway Purpose eth0 192.168.138.35 255.255.255.0 192.168.138.1 Connects Gentic to the public network eth1 192.168.137.35 255.255.255.0 Connects Gentic to Cellar (private) /etc/hosts 127.0.0.1 localhost.localdomain localhost
#
# Public Network - (eth0)
192.168.138.35 gentic
192.168.138.36 cellar
# Private Interconnect - (eth1)
192.168.137.35 gentic-priv
192.168.137.36 cellar-priv
# Public Virtual IP (VIP) addresses for - (eth0)
192.168.138.130 gentic-vip
192.168.138.131 cellar-vip
Host Cellar
Device IP Address Subnet Gateway Purpose eth0 192.168.138.36 255.255.255.0 192.168.138.1 Connects Cellar to the public network eth1 192.168.137.36 255.255.255.0 Connects Cellar to Gentic (private) /etc/hosts 127.0.0.1 localhost.localdomain localhost
#
# Public Network - (eth0)
192.168.138.35 gentic
192.168.138.36 cellar
# Private Interconnect - (eth1)
192.168.137.35 gentic-priv
192.168.137.36 cellar-priv
# Public Virtual IP (VIP) addresses for - (eth0)
192.168.138.130 gentic-vip
192.168.138.131 cellar-vip
Note that the virtual IP addresses only need to be defined in the /etc/hosts file (or your DNS) for both nodes. The public virtual IP addresses will be configured automatically by Oracle when you run the Oracle Universal Installer, which starts Oracle's Virtual Internet Protocol Configuration Assistant (VIPCA). All virtual IP addresses will be activated when the srvctl start nodeapps -n <node_name> command is run. This is the Host Name/IP Address that will be configured in the client(s) tnsnames.ora file.
About IP Addresses
Virtual IP address A public internet protocol (IP) address for each node, to be used as the Virtual IP address (VIP) for client connections. If a node fails, then Oracle Clusterware fails over the VIP address to an available node. This address should be in the /etc/hosts file on any node. The VIP should not be in use at the time of the installation, because this is an IP address that Oracle Clusterware manages. When Automatically Failover occurs, two things happen:
- The new node re-arps the world indicating a new MAC address for the address. For directly connected clients, this usually causes them to see errors on their connections to the old address.
- Subsequent packets sent to the VIP go to the new node, which will send error RST packets back to the clients. This results in the clients getting errors immediately.
This means that when the client issues SQL to the node that is now down, or traverses the address list while connecting, rather than waiting on a very long TCP/IP time-out (~10 minutes), the client receives a TCP reset. In the case of SQL, this is ORA-3113. In the case of connect, the next address in tnsnames is used.
Going one step further is making use of Transparent Application Failover (TAF). With TAF successfully configured, it is possible to completely avoid ORA-3113 errors alltogether.
Public IP address The public IP address name must be resolvable to the hostname. You can register both the public IP and the VIP address with the DNS. If you do not have a DNS, then you must make sure that both public IP addresses are in the node /etc/hosts file (for all cluster nodes) Private IP address A private IP address for each node serves as the private interconnect address for internode cluster communication only. The following must be true for each private IP address:
- It must be separate from the public network
- It must be accessible on the same network interface on each node
- It must be connected to a network switch between the nodes for the
private network; crosscable interconnects are not supportedThe private interconnect is used for internode communication by both Oracle Clusterware and Oracle RAC. The private IP address must be available in each node's /etc/hosts file.
Enterprise Linux Installation and Setup
We use Oracle Enterprise Linux 5.0. A general pictorial guide to the operating system installation can be found here. More specifically, it should be a server installation with a minimum of 2G swap, firewall and secure Linux disabled. We have installed everything for our test environment, Oracle recommends a default server installation.
Disable SELINUX (on both Nodes)
/etc/sysconfig/selinux
# This file controls the state of SELinux on the system.
SELINUX=disabled
Disable Firewall (on both Nodes)
Check to ensure that the firewall option is turned off.
root> /etc/rc.d/init.d/iptables status
root> /etc/rc.d/init.d/iptables stop
root> chkconfig iptables off
Synchronize Time with NTP (on both Nodes)
Ensure that each member node of the cluster is set as closely as possible to the same date and time. Oracle strongly recommends using the Network Time Protocol feature of most operating systems for this purpose, with all nodes using the same reference Network Time Protocol server.
root> /etc/init.d/ntpd status
ntpd (pid 2295) is running...
/etc/ntp.conf
server swisstime.ethz.ch
restrict swisstime.ethz.ch mask 255.255.255.255 nomodify notrap noquery
Kernel Parameters (on both Nodes)
The kernel parameters will need to be defined on every node within the cluster every time the machine is booted. This section focuses on configuring both Linux servers - getting each one prepared for the Oracle RAC 11g installation. This includes verifying enough swap space, setting shared memory and semaphores, setting the maximum amount of file handles, setting the IP local port range, setting shell limits for the oracle user and activating all kernel parameters for the system.
/etc/sysctl.conf
# Additional Parameters added for Oracle 11
# -----------------------------------------
# semaphores: semmsl, semmns, semopm, semmni
kernel.sem = 250 32000 100 128
kernel.shmmni = 4096
net.ipv4.ip_local_port_range = 1024 65000
net.core.rmem_default = 4194304
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 262144
# Additional Parameters added for RAC
# -----------------------------------
net.ipv4.ipfrag_high_thresh = 524288
net.ipv4.ipfrag_low_thresh = 393216
net.ipv4.tcp_rmem = 4096 524288 16777216
net.ipv4.tcp_wmem = 4096 524288 16777216
net.ipv4.tcp_timestamps = 0
net.ipv4.tcp_sack = 0
net.ipv4.tcp_window_scaling = 1
net.core.optmem_max = 524287
net.core.netdev_max_backlog = 2500
sunrpc.tcp_slot_table_entries = 128
sunrpc.udp_slot_table_entries = 128
net.ipv4.tcp_mem = 16384 16384 16384
fs.file-max = 6553600Run the following command to change the current kernel parameters
root> /sbin/sysctl -p
Limits for User Oracle (on both Nodes)
/etc/security/limits.conf
# Limits for User Oracle
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
/etc/pam.d/login
# For Oracle
session required /lib/security/pam_limits.so
session required pam_limits.so
Services to Start (on both Nodes)
Start only the needed Services, this can be done with the chkconfig or service command.
root> chkconfig --list | grep "3:on"
crond 0:off 1:off 2:on 3:on 4:on 5:on 6:off
gpm 0:off 1:off 2:on 3:on 4:on 5:on 6:off
kudzu 0:off 1:off 2:off 3:on 4:on 5:on 6:off
netfs 0:off 1:off 2:off 3:on 4:on 5:on 6:off
network 0:off 1:off 2:on 3:on 4:on 5:on 6:off
nfs 0:off 1:off 2:off 3:on 4:off 5:off 6:off
nfslock 0:off 1:off 2:off 3:on 4:on 5:on 6:off
ntpd 0:off 1:off 2:off 3:on 4:off 5:on 6:off
portmap 0:off 1:off 2:off 3:on 4:on 5:on 6:off
sshd 0:off 1:off 2:on 3:on 4:on 5:on 6:off
syslog 0:off 1:off 2:on 3:on 4:on 5:on 6:off
sysstat 0:off 1:off 2:on 3:on 4:off 5:on 6:off
xfs 0:off 1:off 2:on 3:on 4:on 5:on 6:offroot> service --status-all | grep "is running"
crond (pid 2458) is running...
gpm (pid 2442) is running...
rpc.mountd (pid 2391) is running...
nfsd (pid 2383 2382 2381 2380 2379 2378 2377 2376) is running...
rpc.rquotad (pid 2339) is running...
rpc.statd (pid 2098) is running...
ntpd (pid 2284) is running...
portmap (pid 2072) is running...
rpc.idmapd (pid 2426) is running...
sshd (pid 4191 4189 2257) is running...
syslogd (pid 2046) is running...
klogd (pid 2049) is running...
xfs (pid 2496) is running...
Create Accounts
Create the following groups and the user Oracle on all three hosts
root> groupadd -g 500 oinstall
root> groupadd -g 400 dba
root> useradd -u 400 -g 500 -G dba -c "Oracle Owner" -d /home/oracle -s /bin/bash oracle
root> passwd oracle
$HOME/.bash_profile
#!/bin/bash
# Akadia AG, Fichtenweg 10, CH-3672 Oberdiessbach
# --------------------------------------------------------------------------
# File: .bash_profile
#
# Autor: Martin Zahn, Akadia AG, 20.09.2007
#
# Purpose: Configuration file for BASH Shell
#
# Location: $HOME
#
# Certified: Oracle Enterprise Linux 5
# --------------------------------------------------------------------------
# User specific environment and startup programs
TZ=MET; export TZ
PATH=${PATH}:$HOME/bin
ENV=$HOME/.bashrc
BASH_ENV=$HOME/.bashrc
USERNAME=`whoami`
POSTFIX=/usr/local/postfix
# LANG=en_US.UTF-8
LANG=en_US
COLUMNS=130
LINES=45
DISPLAY=192.168.138.11:0.0
export USERNAME ENV COLUMNS LINES TERM PS1 PS2 PATH POSTFIX BASH_ENV LANG DISPLAY
# Setup the correct Terminal-Type
if [ `tty` != "/dev/tty1" ]
then
# TERM=linux
TERM=vt100
else
# TERM=linux
TERM=vt100
fi
# Setup Terminal (test on [ -t 0 ] is used to avoid problems with Oracle Installer)
# -t fd True if file descriptor fd is open and refers to a terminal.
if [ -t 0 ]
then
stty erase "^H" kill "^U" intr "^C" eof "^D"
stty cs8 -parenb -istrip hupcl ixon ixoff tabs
fi
# Set up shell environment
# set -u # error if undefined variable.
trap "echo -e 'logout $LOGNAME'" 0 # what to do on exit.
# Setup ORACLE 11 environment
if [ `uname -n` = "gentic" ]
then
ORACLE_SID=AKA1; export ORACLE_SID
fi
if [ `uname -n` = "cellar" ]
then
ORACLE_SID=AKA2; export ORACLE_SID
fi
ORACLE_HOSTNAME=`uname -n`; export ORACLE_HOSTNAME
ORACLE_BASE=/u01/app/oracle; export ORACLE_BASE
ORACLE_HOME=${ORACLE_BASE}/product/11.1.0; export ORACLE_HOME
ORA_CRS_HOME=${ORACLE_BASE}/crs; export ORA_CRS_HOME
TNS_ADMIN=${ORACLE_HOME}/network/admin; export TNS_ADMIN
ORA_NLS11=${ORACLE_HOME}/nls/data; export ORA_NLS10
CLASSPATH=${ORACLE_HOME}/JRE:${ORACLE_HOME}/jlib:${ORACLE_HOME}/rdbms/jlib
export CLASSPATH
ORACLE_TERM=xterm; export ORACLE_TERM
ORACLE_OWNER=oracle; export ORACLE_OWNER
NLS_LANG=AMERICAN_AMERICA.WE8ISO8859P1; export NLS_LANG
LD_LIBRARY_PATH=${ORACLE_HOME}/lib:/lib:/usr/lib; export LD_LIBRARY_PATH
# Set up the search paths:
PATH=${POSTFIX}/bin:${POSTFIX}/sbin:${POSTFIX}/sendmail:${ORACLE_HOME}/bin
PATH=${PATH}:${ORA_CRS_HOME}/bin:/usr/local/bin:/bin:/sbin:/usr/bin:/usr/sbin
PATH=${PATH}:/usr/local/sbin:/usr/bin/X11:/usr/X11R6/bin
PATH=${PATH}:.
export PATH
# Set date in European-Form
echo -e " "
date '+Date: %d.%m.%y Time: %H:%M:%S'
echo -e " "
uname -a
# Clean shell-history file .sh_history
: > $HOME/.bash_history
# Show last login
cat .lastlogin
term=`tty`
echo -e "Last login at `date '+%H:%M, %h %d'` on $term" >.lastlogin
echo -e " "
if [ $LOGNAME = "root" ]
then
echo -e "WARNING: YOU ARE SUPERUSER !!!"
echo -e " "
fi
# Get the aliases and functions
if [ -f ~/.bashrc ]; then
. ~/.bashrc
fi
# Set Shell Limits for user oracle
if [ $USER = "oracle" ]
then
ulimit -u 16384 -n 65536
fi
# Umask new files to rw-r--r--
umask 022
$HOME/.bashrc
alias more=less
alias up='cd ..'
alias kk='ls -la | less'
alias ll='ls -la'
alias ls='ls -F'
alias ps='ps -ef'
alias home='cd $HOME'
alias which='type -path'
alias h='history'
#
# Do not produce core dumps
#
# ulimit -c 0
PS1="`whoami`@\h:\w> "
export PS1
PS2="> "
export PS2
NFS Configuration
The Oracle Clusterware Shared Files are the Oracle Cluster Registry (OCR) and the CRS Voting Disk. They will be installed by the Oracle Installer on the Shared Disk on the NFS-Server. Besides this two shared Files all Oracle Datafiles will be created on the Shared Disk.
Create and export Shared Directories on NFS-Server (Opal)
root@opal> mkdir -p /u01/crscfg
root@opal> mkdir -p /u01/votdsk
root@opal> mkdir -p /u01/oradat
root@opal> chown -R oracle:oinstall /u01/crscfg
root@opal> chown -R oracle:oinstall /u01/votdsk
root@opal> chown -R oracle:oinstall /u01/oradat
root@opal> chmod -R 775 /u01/crscfg
root@opal> chmod -R 775 /u01/votdsk
root@opal> chmod -R 775 /u01/oradat
/etc/exports
/u01/crscfg *(rw,sync,no_wdelay,insecure_locks,no_root_squash)
/u01/votdsk *(rw,sync,no_wdelay,insecure_locks,no_root_squash)
/u01/oradat *(rw,sync,insecure,root_squash,no_subtree_check)Export Options:
rw
Allow both read and write requests on this NFS volume. The default is to disallow any request which changes the filesystem. This can also be made explicit by using the ro option. sync
Reply to requests only after the changes have been committed to stable storage.
In this and future releases, sync is the default, and async must be explicit requested if needed. To help make system adminstrators aware of this change, 'exportfs' will issue a warning if neither sync nor async is specified.no_wdelay
This option has no effect if async is also set. The NFS server will normally delay committing a write request to disc slightly if it suspects that another related write request may be in progress or may arrive soon. This allows multiple write requests to be committed to disc with the one operation which can improve performance. If an NFS server received mainly small unrelated requests, this behaviour could actually reduce performance, so no_wdelay is available to turn it off. The default can be explicitly requested with the wdelay option. no_root_squash
root_squash map requests from uid/gid 0 to the anonymous uid/gid. no_root_squash turns off root squashing. insecure
The insecure option allows clients with NFS implementations that don't use a reserved port for NFS no_subtree_check
This option enables subtree checking, which does add another level of security, but can be unreliability in some circumstances. If a subdirectory of a filesystem is exported, but the whole filesystem isn't then whenever a NFS request arrives, the server must check not only that the accessed file is in the appropriate filesystem (which is easy) but also that it is in the exported tree (which is harder). This check is called the subtree_check.
In order to perform this check, the server must include some information about the location of the file in the "filehandle" that is given to the client. This can cause problems with accessing files that are renamed while a client has them open (though in many simple cases it will still work).
Subtree checking is also used to make sure that files inside directories to which only root has access can only be accessed if the filesystem is exported with no_root_squash (see below), even if the file itself allows more general access.
For more information see: man exports
root@opal> service nfs restart Shutting down NFS mountd: [ OK ] Shutting down NFS daemon: [ OK ] Shutting down NFS quotas: [ OK ] Shutting down NFS services: [ OK ] Starting NFS services: [ OK ] Starting NFS quotas: [ OK ] Starting NFS daemon: [ OK ] Starting NFS mountd: [ OK ]root@opal> exportfs -v
/u01/crscfg <world>(rw,no_root_squash,no_subtree_check,insecure_locks,anonuid=65534,anongid=65534)
/u01/votdsk <world>(rw,no_root_squash,no_subtree_check,insecure_locks,anonuid=65534,anongid=65534)
/u01/oradat <world>(rw,wdelay,insecure,root_squash,no_subtree_check,anonuid=65534,anongid=65534)
Mount Shared Directories on all RAC Nodes (Cellar, Gentic)
root> mkdir -p /u01/crscfg
root> mkdir -p /u01/votdsk
root> mkdir -p /u01/oradat
root> chown -R oracle:oinstall /u01/crscfg
root> chown -R oracle:oinstall /u01/votdsk
root> chown -R oracle:oinstall /u01/oradat
root> chmod -R 775 /u01/crscfg
root> chmod -R 775 /u01/votdsk
root> chmod -R 775 /u01/oradat
/etc/fstab
opal:/u01/crscfg /u01/crscfg nfs
rw,bg,hard,nointr,tcp,vers=3,timeo=300,rsize=32768,wsize=32768,actimeo=0 0 0
opal:/u01/votdsk /u01/votdsk nfs
rw,bg,hard,nointr,tcp,vers=3,timeo=300,rsize=32768,wsize=32768,actimeo=0 0 0
opal:/u01/oradat /u01/oradat nfs user,tcp,rsize=32768,wsize=32768,hard,intr,noac,nfsvers=3 0 0Mount Options:
rw
Mount the file system read-write bg
If the first NFS mount attempt times out, retry the mount in the background. After a mount operation is backgrounded, all subsequent mounts on the same NFS server will be backgrounded immediately, without first attempting the mount. A missing mount point is treated as a timeout, to allow for nested NFS mounts. hard
If an NFS file operation has a major timeout then report "server not responding" on the console and continue retrying indefinitely. This is the default. nointr
This will not allow NFS operations (on hard mounts) to be interrupted while waiting for a response from the server. tcp
Mount the NFS filesystem using the TCP protocol instead of the default UDP protocol. Many NFS servers only support UDP. vers
vers is an alternative to nfsvers and is compatible with many other operating systems timeo
The value in tenths of a second before sending the first retransmission after an RPC timeout. The default value depends on whether proto=udp or proto=tcp is in effect (see below). The default value for UDP is 7 tenths of a second. The default value for TCP is 60 seconds. After the first timeout, the timeout is doubled after each successive timeout until a maximum timeout of 60 seconds is reached or the enough retransmissions have occured to cause a major timeout.
Then, if the filesystem is hard mounted, each new timeout cascade restarts at twice the initial value of the previous cascade, again doubling at each retransmission. The maximum timeout is always 60 seconds.
rsize
The number of bytes NFS uses when reading files from an NFS server. The rsize is negotiated between the server and client to determine the largest block size that both can support. The value specified by this option is the maximum size that could be used; however, the actual size used may be smaller. Note: Setting this size to a value less than the largest supported block size will adversely affect performance. wsize
The number of bytes NFS uses when writing files to an NFS server. The wsize is negotiated between the server and client to determine the largest block size that both can support. The value specified by this option is the maximum size that could be used; however, the actual size used may be smaller. Note: Setting this size to a value less than the largest supported block size will adversely affect performance. actimeo
Using actimeo sets all of acregmin, acregmax, acdirmin, and acdirmax to the same value. There is no default value. nfsvers
Use an alternate RPC version number to contact the NFS daemon on the remote host. This option is useful for hosts that can run multiple NFS servers. The default value depends on which kernel you are using. noac
Disable all forms of attribute caching entirely. This extracts a significant performance penalty but it allows two different NFS clients to get reasonable results when both clients are actively writing to a common export on the server. root> service nfs restart
Shutting down NFS mountd: [ OK ]
Shutting down NFS daemon: [ OK ]
Shutting down NFS quotas: [ OK ]
Shutting down NFS services: [ OK ]
Starting NFS services: [ OK ]
Starting NFS quotas: [ OK ]
Starting NFS daemon: [ OK ]
Starting NFS mountd: [ OK ]
root> service netfs restart
Unmounting NFS filesystems: [ OK ]
Mounting NFS filesystems: [ OK ]
Mounting other filesystems: [ OK ]
Enabling SSH User Equivalency
Setup SSH User Equivalency
Before you can install and use Oracle Real Application clusters, you must configure the secure shell (SSH) for the "oracle" UNIX user account on all cluster nodes. The goal here is to setup user equivalence for the "oracle" UNIX user account. User equivalence enables the "oracle" UNIX user account to access all other nodes in the cluster (running commands and copying files) without the need for a password.
Installing Oracle Clusterware and the Oracle Database software is only performed from one node in a RAC cluster. When running the Oracle Universal Installer (OUI) on that particular node, it will use the ssh and scp commands to run remote commands on and copy files (the Oracle software) to all other nodes within the RAC cluster.
Host Cellar
oracle@cellar> mkdir ~/.ssh
oracle@cellar> chmod 700 ~/.ssh
oracle@cellar> /usr/bin/ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/oracle/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/oracle/.ssh/id_rsa.
Your public key has been saved in /home/oracle/.ssh/id_rsa.pub.
The key fingerprint is: 47:49:95:36:70:9a:cf:54:8b:96:43:db:39:ce:bd:bf oracle@cellar
Host Gentic
oracle@gentic> mkdir ~/.ssh
oracle@gentic> chmod 700 ~/.ssh
oracle@gentic> /usr/bin/ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/oracle/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/oracle/.ssh/id_rsa.
Your public key has been saved in /home/oracle/.ssh/id_rsa.pub.
The key fingerprint is: 90:4c:82:48:f1:f1:08:56:dc:e9:c8:98:ca:94:0c:31 oracle@gentic
Host Cellar
oracle@cellar> cd ~/.ssh
oracle@cellar> scp id_rsa.pub gentic:/home/oracle/.ssh/authorized_keys
Host Gentic
oracle@gentic> cd ~/.ssh
oracle@gentic> scp id_rsa.pub cellar:/home/oracle/.ssh/authorized_keys
Host Cellar
oracle@cellar> cat id_rsa.pub >> authorized_keys
oracle@cellar> ssh cellar date
Tue Sep 18 15:15:26 CEST 2007
oracle@cellar> ssh gentic date
Tue Sep 18 15:15:32 CEST 2007
Host Gentic
oracle@gentic> cat id_rsa.pub >> authorized_keys
oracle@gentic> ssh cellar date
Tue Sep 18 15:15:26 CEST 2007
oracle@gentic> ssh gentic date
Tue Sep 18 15:15:32 CEST 2007
Check authorized_keys and known_hosts
Host Cellar
oracle@cellar:~/.ssh> cat authorized_keys
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAv2TjN0KTuvqxr3XBHG2JFecCqZ0aPqGO/8cqBtdg
X9qQuLIP5zGpKGrDcRVULvLncGSifVbDvV89LGFnXiv0FZ+8PHD1snGX5M4YyUMcv362wAaW3g2k
Gp1ky0jQias5CZKtC42f94qt6rU1gm4E6Xh7U2QsLkEC0gPiYlGR2Zey4X01Eb18kM55eeGSFjoo
v58T99MjdHFmxEWWvckhwudYZ4sFYbGxqJgywKtSNT0WI9HAGL3LNLBBjmLbbAnxrI1iDqTGMQIq
zTf+p/E+2K/LrG9oUrN3qdT0EGciD0lcxO6Ke7O/npnCscRoUKPlIChsIN4ruJxikurOMzb37Q==
oracle@gentic
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAwQpfO1b5wSF99b/XRZny/xC9/d2l1Y2oF+YT3Qle
8VumvmNBawCmSucUd9q8Jp6PdgTJLpMO60BwbhsrlqCqAUZ2iCgLBsFvAGjQMrBy1b01yRDGlfi3
pyH1FycuzcyD6S+WSa4CH0A7obAr71CDThzU8LRvGMftXsYN+yKPFYhoXUbw0OC7MQs0BfVKaUo/
CXhMKTYUqPdALm0I0TdlQ2uYpg7iXLIxAVV+qB4jH5RaMWRrFETtp9OErkkACA5O/lb8Fy0gYcDs
M6Sqnv9Nw596vSKn7CXATu8C9HgIbpwdGVc+TwEiQKdMKbgT7z5Ep8LFHrwSm8GtSChR/ILdvw==
oracle@cellaroracle@cellar:~/.ssh> cat known_hosts
gentic,192.168.138.35 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEArQ7O8QZDY84
O6NA2FDUlHQiqc1v+wVpweJAL27kHU8rnqQirExCeVEuySgIqvkNcUf5JlpKold8T0ctB
lHsByaeQKYIhnM+roTay5x+2sNQvLKXsiNcGKu0FdGQPXv5lykO4eXNXl1aFx7FVCHHTS
GUQppAkBmpi1jUOFwU2mFWyI9e2j6V7aeXvmnb6pnmtjxkHqBaGfBA6YDvanxxJOn0967
1CNzgT6fVk+3UBH+8uhMs9dXqnrBKUNz9Ts2+uUfPAP+K1uR2nrG2O+D1UwguFYEm/JH4
XHQYgpihvncEt/EDDmhcTodzWfZP6Rn+iWfWkj9hbC8f7khfNRwRiNQ==
cellar,192.168.138.36 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAuUXTa+JUl7Z
8ovFDczcN8+sAxzrAgfpyjgyDPfdJwWnM70uft8SaOUyf+iWq7kmBi4kBPm3xfYzw2qNT
Nukw6pSAHkxJuKznU9lYPKtyNWW0+ftXtgiqwEob2yFoagMOCUwRQlIEgl3UFWu6Kb2Tn
Di7O08FIXsNgKNe575PH1L6V0lcHoS7KgQt8bev6YqqdjVL25Nvk1TLhEH2toQfkLXL3w
InZEnPolGT8uc+MtUEJ+YkKPpMvh++Hd5BNUeY1AwVIt5RC7usJ70hS4W/sTCn77qz0yC
KGxgWO2POyfB2B5xOy0UYjEbRcLoIq1YOtu1jc208UmJEa/Kj7dQnnw==
Host Gentic
oracle@gentic:~/.ssh> cat authorized_keys
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAwQpfO1b5wSF99b/XRZny/xC9/d2l1Y2oF+YT3Qle
8VumvmNBawCmSucUd9q8Jp6PdgTJLpMO60BwbhsrlqCqAUZ2iCgLBsFvAGjQMrBy1b01yRDGlfi3
pyH1FycuzcyD6S+WSa4CH0A7obAr71CDThzU8LRvGMftXsYN+yKPFYhoXUbw0OC7MQs0BfVKaUo/
CXhMKTYUqPdALm0I0TdlQ2uYpg7iXLIxAVV+qB4jH5RaMWRrFETtp9OErkkACA5O/lb8Fy0gYcDs
M6Sqnv9Nw596vSKn7CXATu8C9HgIbpwdGVc+TwEiQKdMKbgT7z5Ep8LFHrwSm8GtSChR/ILdvw==
oracle@cellar
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAv2TjN0KTuvqxr3XBHG2JFecCqZ0aPqGO/8cqBtdg
X9qQuLIP5zGpKGrDcRVULvLncGSifVbDvV89LGFnXiv0FZ+8PHD1snGX5M4YyUMcv362wAaW3g2k
Gp1ky0jQias5CZKtC42f94qt6rU1gm4E6Xh7U2QsLkEC0gPiYlGR2Zey4X01Eb18kM55eeGSFjoo
v58T99MjdHFmxEWWvckhwudYZ4sFYbGxqJgywKtSNT0WI9HAGL3LNLBBjmLbbAnxrI1iDqTGMQIq
zTf+p/E+2K/LrG9oUrN3qdT0EGciD0lcxO6Ke7O/npnCscRoUKPlIChsIN4ruJxikurOMzb37Q==
oracle@genticoracle@gentic:~/.ssh> cat known_hosts
cellar,192.168.138.36 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAuUXTa+JUl7Z
8ovFDczcN8+sAxzrAgfpyjgyDPfdJwWnM70uft8SaOUyf+iWq7kmBi4kBPm3xfYzw2qNT
Nukw6pSAHkxJuKznU9lYPKtyNWW0+ftXtgiqwEob2yFoagMOCUwRQlIEgl3UFWu6Kb2Tn
Di7O08FIXsNgKNe575PH1L6V0lcHoS7KgQt8bev6YqqdjVL25Nvk1TLhEH2toQfkLXL3w
InZEnPolGT8uc+MtUEJ+YkKPpMvh++Hd5BNUeY1AwVIt5RC7usJ70hS4W/sTCn77qz0yC
KGxgWO2POyfB2B5xOy0UYjEbRcLoIq1YOtu1jc208UmJEa/Kj7dQnnw==
gentic,192.168.138.35 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEArQ7O8QZDY84
O6NA2FDUlHQiqc1v+wVpweJAL27kHU8rnqQirExCeVEuySgIqvkNcUf5JlpKold8T0ctB
lHsByaeQKYIhnM+roTay5x+2sNQvLKXsiNcGKu0FdGQPXv5lykO4eXNXl1aFx7FVCHHTS
GUQppAkBmpi1jUOFwU2mFWyI9e2j6V7aeXvmnb6pnmtjxkHqBaGfBA6YDvanxxJOn0967
1CNzgT6fVk+3UBH+8uhMs9dXqnrBKUNz9Ts2+uUfPAP+K1uR2nrG2O+D1UwguFYEm/JH4
XHQYgpihvncEt/EDDmhcTodzWfZP6Rn+iWfWkj9hbC8f7khfNRwRiNQ==
Install Oracle Clusterware
Perform the following installation procedures on only one node in the cluster! The Oracle Clusterware software will be installed to all other nodes in the cluster by the Oracle Universal Installer.
So, what exactly is the Oracle Clusterware responsible for? It contains all of the cluster and database configuration metadata along with several system management features for RAC. It allows the DBA to register and invite an Oracle instance (or instances) to the cluster. During normal operation, Oracle Clusterware will send messages (via a special ping operation) to all nodes configured in the cluster, often called the «heartbeat». If the heartbeat fails for any of the nodes, it checks with the Oracle Clusterware configuration files (on the shared disk) to distinguish between a real node failure and a network failure.
Create CRS Home, Cluster Registry and Voting Disk
Create CRS Home on both RAC Nodes
Host Cellar
root> mkdir -p /u01/app/oracle/crs
root> chown -R oracle:oinstall /u01/app
root> chmod -R 775 /u01/app
Host Gentic
root> mkdir -p /u01/app/oracle/crs
root> chown -R oracle:oinstall /u01/app
root> chmod -R 775 /u01/app
Create Cluster Registry and Voting Disk
oracle> touch /u01/crscfg/crs_registry
oracle> touch /u01/votdsk/voting_disk
Check the Prerequisites
oracle> unzip linux_11gR1_clusterware.zip
oracle> cd clusterwareBefore installing the clusterware, check the prerequisites have been met using the runcluvfy.sh utility
in the clusterware root directory.oracle> ./runcluvfy.sh stage -pre crsinst -n gentic,cellar -verbose
Performing pre-checks for cluster services setup
Checking node reachability...
Check: Node reachability from node "gentic"
Destination Node Reachable?
------------------------------------ ------------------------
gentic yes
cellar yes
Result: Node reachability check passed from node "gentic".
Checking user equivalence...
Check: User equivalence for user "oracle"
Node Name Comment
------------------------------------ ------------------------
cellar passed
gentic passed
Result: User equivalence check passed for user "oracle".
Checking administrative privileges...
Check: Existence of user "oracle"
Node Name User Exists Comment
------------ ------------------------ ------------------------
cellar yes passed
gentic yes passed
Result: User existence check passed for "oracle".
Check: Existence of group "oinstall"
Node Name Status Group ID
------------ ------------------------ ------------------------
cellar exists 500
gentic exists 500
Result: Group existence check passed for "oinstall".
Check: Membership of user "oracle" in group "oinstall" [as Primary]
Node Name User Exists Group Exists User in Group Primary Comment
---------------- ------------ ------------ ------------ ------------ ------------
gentic yes yes yes yes passed
cellar yes yes yes yes passed
Result: Membership check for user "oracle" in group "oinstall" [as Primary] passed.
Administrative privileges check passed.
Checking node connectivity...
Interface information for node "cellar"
Interface Name IP Address Subnet Subnet Gateway Default Gateway Hardware
Address
---------------- ------------ ------------ ------------ ------------ ------------
eth0 192.168.138.36 192.168.138.0 0.0.0.0 192.168.138.1 00:30:48:28:E7:36
eth1 192.168.137.36 192.168.137.0 0.0.0.0 192.168.138.1 00:30:48:28:E7:37
Interface information for node "gentic"
Interface Name IP Address Subnet Subnet Gateway Default Gateway Hardware Address
---------------- ------------ ------------ ------------ ------------ ------------
eth0 192.168.138.35 192.168.138.0 0.0.0.0 192.168.138.1 00:30:48:29:BD:E8
eth1 192.168.137.35 192.168.137.0 0.0.0.0 192.168.138.1 00:30:48:29:BD:E9
Check: Node connectivity of subnet "192.168.138.0"
Source Destination Connected?
------------------------------ ------------------------------ ----------------
cellar:eth0 gentic:eth0 yes
Result: Node connectivity check passed for subnet "192.168.138.0" with node(s) cellar,gentic.
Check: Node connectivity of subnet "192.168.137.0"
Source Destination Connected?
------------------------------ ------------------------------ ----------------
cellar:eth1 gentic:eth1 yes
Result: Node connectivity check passed for subnet "192.168.137.0" with node(s) cellar,gentic.
Interfaces found on subnet "192.168.138.0" that are likely candidates for a private interconnect:
cellar eth0:192.168.138.36
gentic eth0:192.168.138.35
Interfaces found on subnet "192.168.137.0" that are likely candidates for a private interconnect:
cellar eth1:192.168.137.36
gentic eth1:192.168.137.35
WARNING:
Could not find a suitable set of interfaces for VIPs.
Result: Node connectivity check passed.
Checking system requirements for 'crs'...
Check: Total memory
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
gentic 1.98GB (2075156KB) 1GB (1048576KB) passed
cellar 1010.61MB (1034860KB) 1GB (1048576KB) failed
Result: Total memory check failed.
Check: Free disk space in "/tmp" dir
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
gentic 20.47GB (21460692KB) 400MB (409600KB) passed
cellar 19.1GB (20027204KB) 400MB (409600KB) passed
Result: Free disk space check passed.
Check: Swap space
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
gentic 2.44GB (2555896KB) 1.5GB (1572864KB) passed
cellar 2.44GB (2562356KB) 1.5GB (1572864KB) passed
Result: Swap space check passed.
Check: System architecture
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
gentic i686 i686 passed
cellar i686 i686 passed
Result: System architecture check passed.
Check: Kernel version
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
gentic 2.6.18-8.el5PAE 2.6.9 passed
cellar 2.6.18-8.el5PAE 2.6.9 passed
Result: Kernel version check passed.
Check: Package existence for "make-3.81"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic make-3.81-1.1 passed
cellar make-3.81-1.1 passed
Result: Package existence check passed for "make-3.81".
Check: Package existence for "binutils-2.17.50.0.6"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic binutils-2.17.50.0.6-2.el5 passed
cellar binutils-2.17.50.0.6-2.el5 passed
Result: Package existence check passed for "binutils-2.17.50.0.6".
Check: Package existence for "gcc-4.1.1"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic gcc-4.1.1-52.el5 passed
cellar gcc-4.1.1-52.el5 passed
Result: Package existence check passed for "gcc-4.1.1".
Check: Package existence for "libaio-0.3.106"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic libaio-0.3.106-3.2 passed
cellar libaio-0.3.106-3.2 passed
Result: Package existence check passed for "libaio-0.3.106".
Check: Package existence for "libaio-devel-0.3.106"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic libaio-devel-0.3.106-3.2 passed
cellar libaio-devel-0.3.106-3.2 passed
Result: Package existence check passed for "libaio-devel-0.3.106".
Check: Package existence for "libstdc++-4.1.1"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic libstdc++-4.1.1-52.el5 passed
cellar libstdc++-4.1.1-52.el5 passed
Result: Package existence check passed for "libstdc++-4.1.1".
Check: Package existence for "elfutils-libelf-devel-0.125"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic elfutils-libelf-devel-0.125-3.el5 passed
cellar elfutils-libelf-devel-0.125-3.el5 passed
Result: Package existence check passed for "elfutils-libelf-devel-0.125".
Check: Package existence for "sysstat-7.0.0"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic sysstat-7.0.0-3.el5 passed
cellar sysstat-7.0.0-3.el5 passed
Result: Package existence check passed for "sysstat-7.0.0".
Check: Package existence for "compat-libstdc++-33-3.2.3"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic compat-libstdc++-33-3.2.3-61 passed
cellar compat-libstdc++-33-3.2.3-61 passed
Result: Package existence check passed for "compat-libstdc++-33-3.2.3".
Check: Package existence for "libgcc-4.1.1"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic libgcc-4.1.1-52.el5 passed
cellar libgcc-4.1.1-52.el5 passed
Result: Package existence check passed for "libgcc-4.1.1".
Check: Package existence for "libstdc++-devel-4.1.1"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic libstdc++-devel-4.1.1-52.el5 passed
cellar libstdc++-devel-4.1.1-52.el5 passed
Result: Package existence check passed for "libstdc++-devel-4.1.1".
Check: Package existence for "unixODBC-2.2.11"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic unixODBC-2.2.11-7.1 passed
cellar unixODBC-2.2.11-7.1 passed
Result: Package existence check passed for "unixODBC-2.2.11".
Check: Package existence for "unixODBC-devel-2.2.11"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic unixODBC-devel-2.2.11-7.1 passed
cellar unixODBC-devel-2.2.11-7.1 passed
Result: Package existence check passed for "unixODBC-devel-2.2.11".
Check: Package existence for "glibc-2.5-12"
Node Name Status Comment
------------------------------ ------------------------------ ----------------
gentic glibc-2.5-12 passed
cellar glibc-2.5-12 passed
Result: Package existence check passed for "glibc-2.5-12".
Check: Group existence for "dba"
Node Name Status Comment
------------ ------------------------ ------------------------
gentic exists passed
cellar exists passed
Result: Group existence check passed for "dba".
Check: Group existence for "oinstall"
Node Name Status Comment
------------ ------------------------ ------------------------
gentic exists passed
cellar exists passed
Result: Group existence check passed for "oinstall".
Check: User existence for "nobody"
Node Name Status Comment
------------ ------------------------ ------------------------
gentic exists passed
cellar exists passed
Result: User existence check passed for "nobody".
System requirement failed for 'crs'
Pre-check for cluster services setup was unsuccessful.
Checks did not pass for the following node(s): cellarThe failed memory check on Cellar can be ignored.
Install Clusterware
Make sure that the X11-Server is started and reachable.
oracle> echo $DISPLAY
192.168.138.11:0.0Load the SSH Keys into memory
oracle> exec /usr/bin/ssh-agent $SHELL
oracle> /usr/bin/ssh-add
Identity added: /home/oracle/.ssh/id_rsa (/home/oracle/.ssh/id_rsa)Start the Installer, make sure that there are no errors shown in the Installer Window
oracle> ./runInstaller
Starting Oracle Universal Installer...

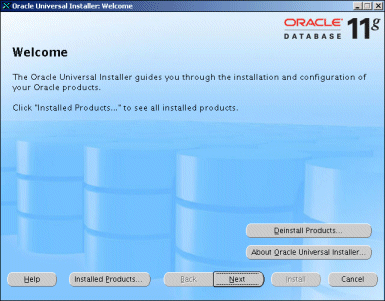

Click [Next]

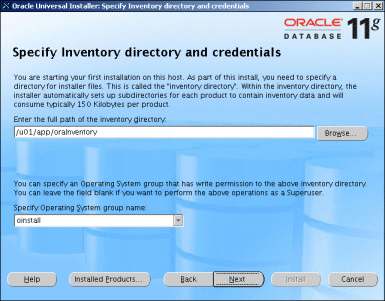

Inventory should be ok: /u01/app/oraInventory

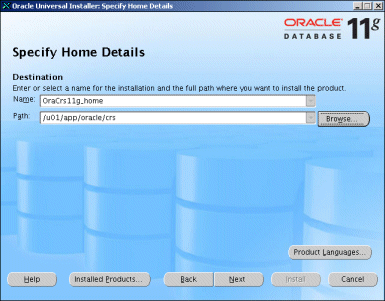

Enter /u01/app/oracle/crs
Everything should be OK

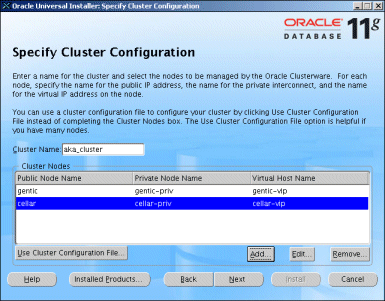

Enter cellar Node using [Add] Button
Specify eth0 as the Public Interface
Enter /u01/crscfg/crs_registry for the Registry

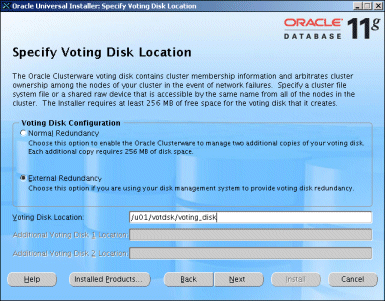

Enter /u01/votdsk/voting_disk for the voting disk

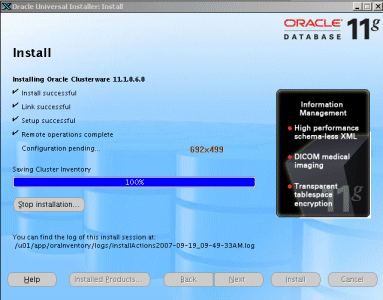

Now start the scripts as root as shown
in the window, one by one as follows.
Host Gentic
oracle> cd /u01/app/oraInventory
oracle> su
root> ./orainstRoot.sh
Changing permissions of /u01/app/oraInventory to 770.
Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete
Host Cellar
oracle> cd /u01/app/oraInventory
oracle> su
root> ./orainstRoot.sh
Changing permissions of /u01/app/oraInventory to 770.
Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete
Host Gentic
root> cd /u01/app/oracle/crs
root> ./root.sh
WARNING: directory '/u01/app/oracle' is not owned by root
WARNING: directory '/u01/app' is not owned by root
Checking to see if Oracle CRS stack is already configured
/etc/oracle does not exist. Creating it now.
Setting the permissions on OCR backup directory
Setting up Network socket directories
Oracle Cluster Registry configuration upgraded successfully
The directory '/u01/app/oracle' is not owned by root. Changing owner to root
The directory '/u01/app' is not owned by root. Changing owner to root
Successfully accumulated necessary OCR keys.
Using ports: CSS=49895 CRS=49896 EVMC=49898 and EVMR=49897.
node <nodenumber>: <nodename> <private interconnect name> <hostname>
node 1: gentic gentic-priv gentic
node 2: cellar cellar-priv cellar
Creating OCR keys for user 'root', privgrp 'root'..
Operation successful.
Now formatting voting device: /u01/votdsk/voting_disk
Format of 1 voting devices complete.
Date: 19.09.07 Time: 10:03:48
Linux gentic 2.6.18-8.el5PAE #1 SMP Tue Jun 5 23:39:57 EDT 2007 i686 i686 i386 GNU/Linux
Last login at 10:03, Sep 19 on /dev/pts/1
Startup will be queued to init within 30 seconds.
Adding daemons to inittab
Expecting the CRS daemons to be up within 600 seconds.
Cluster Synchronization Services is active on these nodes.
gentic
Cluster Synchronization Services is inactive on these nodes.
cellar
Local node checking complete. Run root.sh on remaining nodes to start CRS daemons.
Host Cellar
root> cd /u01/app/oracle/crs
root> ./root.sh
WARNING: directory '/u01/app/oracle' is not owned by root
WARNING: directory '/u01/app' is not owned by root
Checking to see if Oracle CRS stack is already configured
/etc/oracle does not exist. Creating it now.
Setting the permissions on OCR backup directory
Setting up Network socket directories
Oracle Cluster Registry configuration upgraded successfully
The directory '/u01/app/oracle' is not owned by root. Changing owner to root
The directory '/u01/app' is not owned by root. Changing owner to root
clscfg: EXISTING configuration version 4 detected.
clscfg: version 4 is 11 Release 1.
Successfully accumulated necessary OCR keys.
Using ports: CSS=49895 CRS=49896 EVMC=49898 and EVMR=49897.
node <nodenumber>: <nodename> <private interconnect name> <hostname>
node 1: gentic gentic-priv gentic
node 2: cellar cellar-priv cellar
clscfg: Arguments check out successfully.
NO KEYS WERE WRITTEN. Supply -force parameter to override.
-force is destructive and will destroy any previous cluster
configuration.
Oracle Cluster Registry for cluster has already been initialized
Date: 19.09.07 Time: 10:10:11
Linux cellar 2.6.18-8.el5PAE #1 SMP Tue Jun 5 23:39:57 EDT 2007 i686 i686 i386 GNU/Linux
Last login at 10:10, Sep 19 on /dev/pts/0
Startup will be queued to init within 30 seconds.
Adding daemons to inittab
Expecting the CRS daemons to be up within 600 seconds.
Cluster Synchronization Services is active on these nodes.
gentic
cellar
Cluster Synchronization Services is active on all the nodes.
Waiting for the Oracle CRSD and EVMD to start
Oracle CRS stack installed and running under init(1M)
Running vipca(silent) for configuring nodeapps
Creating VIP application resource on (2) nodes...
Creating GSD application resource on (2) nodes...
Creating ONS application resource on (2) nodes...
Starting VIP application resource on (2) nodes...
Starting GSD application resource on (2) nodes...
Starting ONS application resource on (2) nodes...
Done.Go back to the Installer.
The clusterware installation is now complete, if you reboot the nodes, you will see that the clusterware now is automatically started with the script /etc/init.d/S96init.crs, many processes are now up and running.
Install Oracle Database Software
Perform the following installation procedures on only one node in the cluster! The Oracle database software will be installed to all other nodes in the cluster by the Oracle Universal Installer.
You will not use the «Create Database» option when installing the software. You will, instead, create the database using the Database Creation Assistant (DBCA) after the install.
Create Oracle Home
Create Oracle Home on both RAC Nodes
Host Cellar
root> mkdir -p /u01/app/oracle/product/11.1.0
root> chown -R oracle:oinstall /u01/app/oracle/product
root> chmod -R 775 /u01/app/oracle/product
Host Gentic
root> mkdir -p /u01/app/oracle/product/11.1.0
root> chown -R oracle:oinstall /u01/app/oracle/product
root> chmod -R 775 /u01/app/oracle/product
Install Oracle Database Software
oracle> unzip linux_11gR1_database.zip
oracle> cd databaseMake sure that the X11-Server is started and reachable.
oracle> echo $DISPLAY
192.168.138.11:0.0Load the SSH Keys into memory
oracle> exec /usr/bin/ssh-agent $SHELL
oracle> /usr/bin/ssh-add
Identity added: /home/oracle/.ssh/id_rsa (/home/oracle/.ssh/id_rsa)Start the Installer, make sure that there are no errors shown in the Installer Window
oracle> ./runInstaller

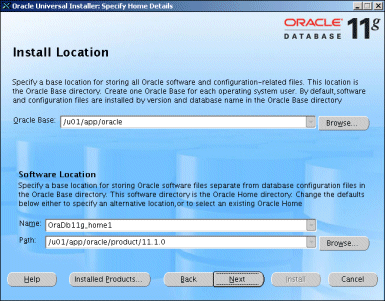

Click [Next]
Create Custom Database
Specify /u01/app/oracle/product/11.1.0
Specify all nodes of the Cluster
Everything should be OK
Select the desired Options
We use OS group DBA for all accounts
Install only the database software
Click [Install]
Now start the scripts as root as shown in the window, one by one as follows.
Host Cellar
oracle> cd /u01/app/oracle/product/11.1.0
oracle> su
root> ./root.sh
Host Gentic
oracle> cd /u01/app/oracle/product/11.1.0
oracle> su
root> ./root.sh
Create Listener Configuration
The process of creating the TNS listener only needs to be performed on one node in the cluster. All changes will be made and replicated to all nodes in the cluster. On one of the nodes bring up the NETCA and run through the process of creating a new TNS listener process and also configure the node for local access.
Host Gentic
oracle> netca
- Choose Listener Configuration (listener.ora), Add, Listener Name: LISTENER
- Choose Naming Methods Configuration (sqlnet.ora), Local Naming
- Local Net Service Name Configuration (tnsnames.ora), Add, Service Name=AKA, TCP, Hostname=gentic, Port=1521
Note that the Configuration Files are stored in $TNS_ADMIN. We noted, that $TNS_ADMIN has to point to
$ORACLE_HOME/network/admin. If it points to another location, the listener is not successfully started!oracle@gentic> echo $TNS_ADMIN
/u01/app/oracle/product/11.1.0/network/admin
LISTENER.ORA on Host Gentic
# Akadia AG, Fichtenweg 10, CH-3672 Oberdiessbach listener.ora
# --------------------------------------------------------------------------
# File: listener.ora
#
# Autor: Martin Zahn, Akadia AG, 30.09.2007
#
# Purpose: Configuration file for Net Listener (RAC Configuration)
#
# Location: $TNS_ADMIN
#
# Certified: Oracle 11.1.0.6.0 on Enterprise Linux 5
# --------------------------------------------------------------------------
LISTENER_Gentic =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = gentic-vip)(PORT = 1521)(IP = FIRST))
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.138.35)(PORT = 1521)(IP = FIRST))
)
)
SID_LIST_LISTENER_Gentic =
(SID_LIST =
(SID_DESC =
(SID_NAME = PLSExtProc)
(ORACLE_HOME = /u01/app/oracle/product/11.1.0)
(PROGRAM = extproc)
)
)
LISTENER.ORA on Host Cellar
# Akadia AG, Fichtenweg 10, CH-3672 Oberdiessbach listener.ora
# --------------------------------------------------------------------------
# File: listener.ora
#
# Autor: Martin Zahn, Akadia AG, 30.09.2007
#
# Purpose: Configuration file for Net Listener (RAC Configuration)
#
# Location: $TNS_ADMIN
#
# Certified: Oracle 11.1.0.6.0 on Enterprise Linux 5
# --------------------------------------------------------------------------
LISTENER_CELLAR =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = cellar-vip)(PORT = 1521)(IP = FIRST))
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.138.36)(PORT = 1521)(IP = FIRST))
)
)
SID_LIST_LISTENER_CELLAR =
(SID_LIST =
(SID_DESC =
(SID_NAME = PLSExtProc)
(ORACLE_HOME = /u01/app/oracle/product/11.1.0)
(PROGRAM = extproc)
)
)
TNSNAMES.ORA on both Nodes
# Akadia AG, Fichtenweg 10, CH-3672 Oberdiessbach tnsnames.ora
# --------------------------------------------------------------------------
# File: tnsnames.ora
#
# Autor: Martin Zahn, Akadia AG, 30.09.2007
#
# Purpose: Configuration File for all Net Clients (RAC Configuration)
#
# Location: $TNS_ADMIN
#
# Certified: Oracle 11.1.0.6.0 on Enterprise Linux 5
# --------------------------------------------------------------------------
AKA =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = gentic-vip)(PORT = 1521))
(ADDRESS = (PROTOCOL = TCP)(HOST = cellar-vip)(PORT = 1521))
(LOAD_BALANCE = yes)
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = AKA.WORLD)
(FAILOVER_MODE =
(TYPE = SELECT)
(METHOD = BASIC)
(RETRIES = 180)
(DELAY = 5)
)
)
)
AKA2 =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = cellar-vip)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = AKA.WORLD)
(INSTANCE_NAME = AKA2)
)
)
AKA1 =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = gentic-vip)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = AKA.WORLD)
(INSTANCE_NAME = AKA1)
)
)
LISTENERS_AKA =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = gentic-vip)(PORT = 1521))
(ADDRESS = (PROTOCOL = TCP)(HOST = cellar-vip)(PORT = 1521))
)
EXTPROC_CONNECTION_DATA =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC0))
)
(CONNECT_DATA =
(SID = PLSExtProc)
(PRESENTATION = RO)
)
)
SQLNET.ORA on both Nodes
# Akadia AG, Fichtenweg 10, CH-3672 Oberdiessbach sqlnet.ora
# --------------------------------------------------------------------------
# File: sqlnet.ora
#
# Autor: Martin Zahn, Akadia AG, 30.09.2007
#
# Purpose: Configuration File for all Net Clients (RAC Configuration)
#
# Location: $TNS_ADMIN
#
# Certified: Oracle 11.1.0.6.0 on Enterprise Linux 5
# --------------------------------------------------------------------------
NAMES.DIRECTORY_PATH= (TNSNAMES)
Start / Stop Listener
oracle@gentic> srvctl stop listener -n gentic -l LISTENER_GENTIC
oracle@gentic> srvctl start listener -n gentic -l LISTENER_GENTICoracle@cellar> srvctl stop listener -n gentic -l LISTENER_CELLAR
oracle@cellar> srvctl start listener -n gentic -l LISTENER_CELLAR
Create the Cluster Database
DBCA
For the Clustered Database, it's easier to create the database directly with DBCA. Oracle strongly recommends that you use DBCA to create a clustered database. The scripts which can be generated by DBCA are for reference purposes only. They can be found in /u01/app/oracle/admin/AKA/scripts. We tried to create the Cluster Database using the scripts, but without success. The following Figure shows the location for most of the needed Database File Locations.
The following Table shows the PATH to the corresponding Files
File Location Shared audit_file_dest /u01/app/oracle/admin/AKA/adump No background_dump_dest /u01/app/oracle/diag/rdbms/aka/AKA1/trace
/u01/app/oracle/diag/rdbms/aka/AKA2/traceNo core_dump_dest /u01/app/oracle/diag/rdbms/aka/AKA1/cdump
/u01/app/oracle/diag/rdbms/aka/AKA2/cdumpNo user_dump_dest /u01/app/oracle/diag/rdbms/aka/AKA1/trace
/u01/app/oracle/diag/rdbms/aka/AKA2/traceNo dg_broker_config_file1
dg_broker_config_file2/u01/app/oracle/product/11.1.0/dbs/dr1AKA.dat
/u01/app/oracle/product/11.1.0/dbs/dr2AKA.datNo diagnostic_dest /u01/app/oracle No Alert.log (log.xml) /u01/app/oracle/diag/rdbms/aka/AKA1/alert No LISTENER.ORA /u01/app/oracle/product/11.1.0/network/admin No TNSNAMES.ORA /u01/app/oracle/product/11.1.0/network/admin No SQLNET.ORA /u01/app/oracle/product/11.1.0/network/admin No spfile /u01/oradat/AKA/spfileAKA.ora Yes INIT.ORA /u01/app/oracle/product/11.1.0/dbs/initAKA1.ora
/u01/app/oracle/product/11.1.0/dbs/initAKA2.oralinked to spfile /u01/oradat/AKA/spfileAKA.ora
Yes control_files /u01/oradat/AKA/control01.ctl,
/u01/oradat/AKA/control02.ctl
/u01/oradat/AKA/control03.ctlYes SYSTEM Tablespace /u01/oradat/AKA/system01.dbf Yes SYSAUX Tablespace /u01/oradat/AKA/sysaux01.dbf Yes TEMP Tablespace /u01/oradat/AKA/temp01.dbf Yes UNDO Tablespace /u01/oradat/AKA/undotbs01.dbf
/u01/oradat/AKA/undotbs02.dbfYes Redolog Files /u01/oradat/AKA/redo01.log
/u01/oradat/AKA/redo02.log
/u01/oradat/AKA/redo03.log
/u01/oradat/AKA/redo04.logYes USERS Tablespace /u01/oradat/AKA/users01.dbf Yes Cluster Registry File /u01/crscfg/crs_registry Yes Voting Disk /u01/votdsk/voting_disk Yes Enterprise Manager Console https://gentic:1158/em Yes Now, create this Database using DBCA.

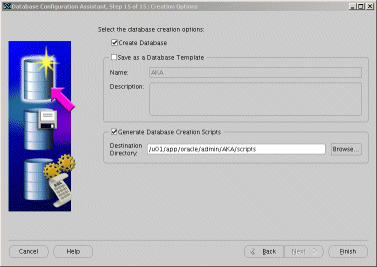

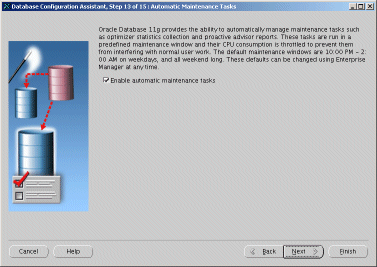

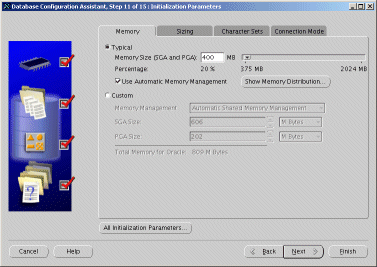

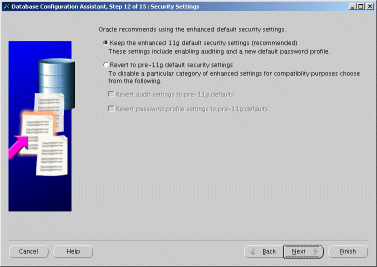

oracle@gentic> dbca

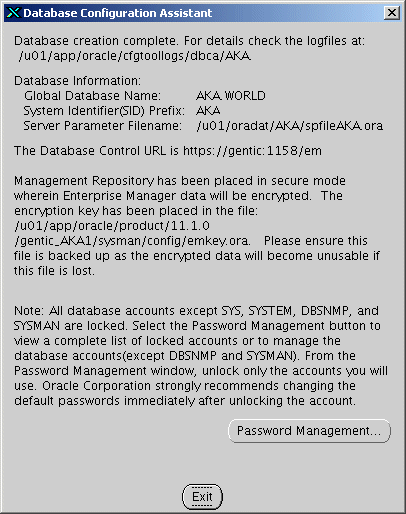

Check the Logfiles in:
/u01/app/oracle/cfgtoollogs/dbca/AKA261644 Sep 29 13:42 apex.log
10513 Sep 29 12:31 context.log
0 Sep 29 13:42 CreateClustDBViews.log
534782 Sep 29 12:22 CreateDBCatalog.log
442 Sep 29 11:46 CreateDB.log
12971 Sep 29 12:55 cwmlite.log
170921 Sep 29 13:50 emConfig.log
222385 Sep 29 13:20 emRepository.log
5496 Sep 29 12:50 interMedia.log
3858 Sep 29 12:29 JServer.log
267 Sep 29 13:43 lockAccount.log
562 Sep 29 12:38 ordinst.log
357 Sep 29 13:42 owb.log
65 Sep 29 18:04 postDBCreation.log
27283 Sep 29 13:05 spatial.log
174 Sep 29 12:22 sqlPlusHelp.log
1439857 Sep 29 18:05 trace.log
1518 Sep 29 13:43 ultraSearchCfg.log
7518 Sep 29 13:06 ultraSearch.log
30140 Sep 29 12:38 xdb_protocol.log
Check created Database
The srvctl utility shows the current configuration and status of the RAC database.
Display configuration for the AKA Cluster Database
oracle@gentic> srvctl config database -d AKA
gentic AKA1 /u01/app/oracle/product/11.1.0
cellar AKA2 /u01/app/oracle/product/11.1.0
Status of all instances and services
oracle@gentic> srvctl status database -d AKA
Instance AKA1 is running on node gentic
Instance AKA2 is running on node cellar
Status of node applications on a particular node
oracle@gentic> srvctl status nodeapps -n gentic
VIP is running on node: gentic
GSD is running on node: gentic
Listener is running on node: gentic
ONS daemon is running on node: gentic
Display the configuration for node applications - (VIP, GSD, ONS, Listener)
oracle@gentic> srvctl config nodeapps -n gentic -a -g -s -l
VIP exists.: /gentic-vip/192.168.138.130/255.255.255.0/eth0
GSD exists.
ONS daemon exists.
Listener exists.
All running instances in the cluster
sqlplus system/manager@AKA1
SELECT inst_id,
instance_number,
instance_name,
parallel,
status,
database_status,
active_state,
host_name host
FROM gv$instance
ORDER BY inst_id;
INST_ID INSTANCE_NUMBER INSTANCE_NAME PAR STATUS DATABASE_STATUS ACTIVE_ST HOST
---------- --------------- ---------------- --- ------------ ----------------- --------- --------
1 1 AKA1 YES OPEN ACTIVE NORMAL gentic
2 2 AKA2 YES OPEN ACTIVE NORMAL cellar
SELECT name FROM v$datafile
UNION
SELECT member FROM v$logfile
UNION
SELECT name FROM v$controlfile
UNION
SELECT name FROM v$tempfile;
NAME
--------------------------------------
/u01/oradat/AKA/control01.ctl
/u01/oradat/AKA/control02.ctl
/u01/oradat/AKA/control03.ctl
/u01/oradat/AKA/redo01.log
/u01/oradat/AKA/redo02.log
/u01/oradat/AKA/redo03.log
/u01/oradat/AKA/redo04.log
/u01/oradat/AKA/sysaux01.dbf
/u01/oradat/AKA/system01.dbf
/u01/oradat/AKA/temp01.dbf
/u01/oradat/AKA/undotbs01.dbf
/u01/oradat/AKA/undotbs02.dbf
/u01/oradat/AKA/users01.dbf
The V$ACTIVE_INSTANCES view can also display the current status of the instances.
SELECT * FROM v$active_instances;
INST_NUMBER INST_NAME
----------- ----------------------------------------------
1 gentic:AKA1
2 cellar:AKA2
Finally, the GV$ allow you to display global information for the whole RAC.
SELECT inst_id, username, sid, serial#
FROM gv$session
WHERE username IS NOT NULL;
INST_ID USERNAME SID SERIAL#
---------- ------------------------------ ---------- ----------
1 SYSTEM 113 137
1 DBSNMP 114 264
1 DBSNMP 116 27
1 SYSMAN 118 4
1 SYSMAN 121 11
1 SYSMAN 124 25
1 SYS 125 18
1 SYSMAN 126 14
1 SYS 127 7
1 DBSNMP 128 370
1 SYS 130 52
1 SYS 144 9
1 SYSTEM 170 608
2 DBSNMP 117 393
2 SYSTEM 119 1997
2 SYSMAN 123 53
2 DBSNMP 124 52
2 SYS 127 115
2 SYS 128 126
2 SYSMAN 129 771
2 SYSMAN 134 18
2 DBSNMP 135 5
2 SYSMAN 146 42
2 SYSMAN 170 49
Start Enterprise Manager Console
The Enterprise Manager Console is shared for the whole Cluster, in our Example it listens on
https://gentic:1158/em
Stopping the Oracle RAC 11g Environment
At this point, we've installed and configured Oracle RAC 11g entirely and have a fully functional clustered database.
All services - including Oracle Clusterware, all Oracle instances, Enterprise Manager Database Console will start automatically on each reboot of the Linux nodes.There are times, however, when you might want to shut down a node and manually start it back up. Or you may find that Enterprise Manager is not running and need to start it.
oracle@gentic> emctl stop dbconsole
oracle@gentic> srvctl stop instance -d AKA -i AKA1
oracle@gentic> srvctl stop nodeapps -n genticoracle@cellar> emctl stop dbconsole
oracle@cellar> srvctl stop instance -d AKA -i AKA2
oracle@cellar> srvctl stop nodeapps -n cellar
Starting the Oracle RAC 11g Environment
The first step is to start the node applications (Virtual IP, GSD, TNS Listener, and ONS). When the node applications are successfully started, then bring up the Oracle instance (and related services) and the Enterprise Manager Database console.
oracle@gentic> srvctl start nodeapps -n gentic
oracle@gentic> srvctl start instance -d AKA -i AKA1
oracle@gentic> emctl start dbconsoleoracle@cellar> srvctl start nodeapps -n cellar
oracle@cellar> srvctl start instance -d AKA -i AKA2
oracle@cellar> emctl start dbconsole
Start/Stop All Instances with SRVCTL
Start/stop all the instances and their enabled services
oracle@gentic> srvctl start database -d AKA
oracle@gentic> srvctl stop database -d AKA
Transparent Application Failover (TAF)
When considering the availability of the Oracle database, Oracle RAC 11g provides a superior solution with its advanced failover mechanisms. Oracle RAC 11g includes the required components that all work within a clustered configuration responsible for providing continuous availability; when one of the participating systems fail within the cluster, the users are automatically migrated to the other available systems.
A major component of Oracle RAC 11g that is responsible for failover processing is the Transparent Application Failover (TAF) option. All database connections (and processes) that lose connections are reconnected to another node within the cluster. The failover is completely transparent to the user.
One important note is that TAF happens automatically within the OCI libraries. Thus your application (client) code does not need to change in order to take advantage of TAF. Certain configuration steps, however, will need to be done on the Oracle TNS file tnsnames.ora.
Setup the tnsnames.ora File on the Oracle Client (Host VIPER)
Before demonstrating TAF, we need to verify that a valid entry exists in the tnsnames.ora file on a non-RAC client machine. Ensure that you have the Oracle RDBMS software installed. For our Test we use an Oracle 10.2.0.3 Non-RAC Client. Check that the following Service AKA is included in the tnsnames.ora File on the Non-RAC Client.
AKA =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = gentic-vip)(PORT = 1521))
(ADDRESS = (PROTOCOL = TCP)(HOST = cellar-vip)(PORT = 1521))
(LOAD_BALANCE = yes)
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = AKA.WORLD)
(FAILOVER_MODE =
(TYPE = SELECT)
(METHOD = BASIC)
(RETRIES = 180)
(DELAY = 5)
)
)
)
Setup of the sqlnet.ora File on the Oracle Client (Host VIPER)
Make sure, that tnsnames.ora on the Oracle Client will be used.
NAMES.DIRECTORY_PATH= (TNSNAMES)
TAF Test
Our Test is initiated from the Non-RAC Client VIPER where Oracle 10.2.0.3 is installed
oracle@viper> ping gentic-vip
PING gentic-vip (192.168.138.130) 56(84) bytes of data.
64 bytes from gentic-vip (192.168.138.130): icmp_seq=1 ttl=64 time=2.17 ms
64 bytes from gentic-vip (192.168.138.130): icmp_seq=2 ttl=64 time=1.20 msoracle@viper> ping cellar-vip
PING cellar-vip (192.168.138.131) 56(84) bytes of data.
64 bytes from cellar-vip (192.168.138.131): icmp_seq=1 ttl=64 time=2.41 ms
64 bytes from cellar-vip (192.168.138.131): icmp_seq=2 ttl=64 time=1.30 msoracle@viper> tnsping AKA
TNS Ping Utility for Linux: Version 10.2.0.3.0 - Production on 30-SEP-2007 11:35:46
Used parameter files: /home/oracle/config/10.2.0/sqlnet.ora
Used TNSNAMES adapter to resolve the alias
Attempting to contact (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = gentic-vip)
(PORT = 1521)) (ADDRESS = (PROTOCOL = TCP)(HOST = cellar-vip)(PORT = 1521))
(LOAD_BALANCE = yes) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = AKA.WORLD)
(FAILOVER_MODE = (TYPE = SELECT) (METHOD = BASIC) (RETRIES = 180) (DELAY = 5))))OK (0 msec)
SQL Query to Check the Session's Failover Information
The following SQL query can be used to check a session's failover type, failover method, and if a failover has occurred. We will be using this query throughout this example.
oracle@viper> sqlplus system/manager@AKA
SQL*Plus: Release 10.2.0.3.0 - Production on Sun Sep 30 11:38:45 2007
Copyright (c) 1982, 2006, Oracle. All Rights Reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - Production
With the Partitioning, Real Application Clusters, OLAP, Data Mining
and Real Application Testing options
SQL> COLUMN instance_name FORMAT a13
COLUMN host_name FORMAT a9
COLUMN failover_method FORMAT a15
COLUMN failed_over FORMAT a11
SELECT DISTINCT
v.instance_name AS instance_name,
v.host_name AS host_name,
s.failover_type AS failover_type,
s.failover_method AS failover_method,
s.failed_over AS failed_over
FROM v$instance v, v$session s
WHERE s.username = 'SYSTEM';
INSTANCE_NAME HOST_NAME FAILOVER_TYPE FAILOVER_METHOD FAILED_OVER
------------- --------- ------------- --------------- -----------
AKA2 cellar SELECT BASIC NOWe can see, that we are connected to the Instance AKA2 which is running on Cellar. Now we stop this Instance without disconnecting from VIPER.
oracle@cellar> srvctl status database -d AKA
Instance AKA1 is running on node gentic
Instance AKA2 is running on node cellaroracle@cellar> srvctl stop instance -d AKA -i AKA2 -o abort
oracle@cellar> srvctl status database -d AKA
Instance AKA1 is running on node gentic
Instance AKA2 is not running on node cellarNow let's go back to our SQL session on VIPER and rerun the SQL statement:
SQL> COLUMN instance_name FORMAT a13
COLUMN host_name FORMAT a9
COLUMN failover_method FORMAT a15
COLUMN failed_over FORMAT a11
SELECT DISTINCT
v.instance_name AS instance_name,
v.host_name AS host_name,
s.failover_type AS failover_type,
s.failover_method AS failover_method,
s.failed_over AS failed_over
FROM v$instance v, v$session s
WHERE s.username = 'SYSTEM';
INSTANCE_NAME HOST_NAME FAILOVER_TYPE FAILOVER_METHOD FAILED_OVER
------------- --------- ------------- --------------- -----------
AKA1 gentic SELECT BASIC YESWe can see that the above session has now been failed over to instance AKA1 on Gentic.
Facts Sheet RAC
Here, we present some important Facts around the RAC Architecture.
Oracle RAC databases differ architecturally from single-instance Oracle databases in that each Oracle RAC database instance also has:
- At least one additional thread of redo for each instance
- An instance-specific undo tablespace (there are 2 UNDO Tablespaces for a 2-Node RAC)
All data files, control files, SPFILEs, and redo log files in Oracle RAC environments must reside on cluster-aware shared disks so that all of the cluster database instances can access these storage components.
Oracle recommends that you use one shared server parameter file (SPFILE) with instance-specific entries. Alternatively, you can use a local file system to store instance-specific parameter files (PFILEs).
Troubles during the Installation
We encountered the following troubles during our Installation
Make sure the hostname's during SSH User Equivalency Setup are identically in /etc/hosts, $HOME/.ssh/authorized_keys and $HOME/.ssh/known_hosts. For example if one host is called gentic in one file and gentic.localhost in another file the Installation will fail.
We noticed, that it's extremely hard to setup a Clustered Database with the generated Scripts from DBCA. The Database can be created, but it is difficult to register it with the Cluster Software using SVCTL.
